22-inch display screen
laser cutting head can autofocus

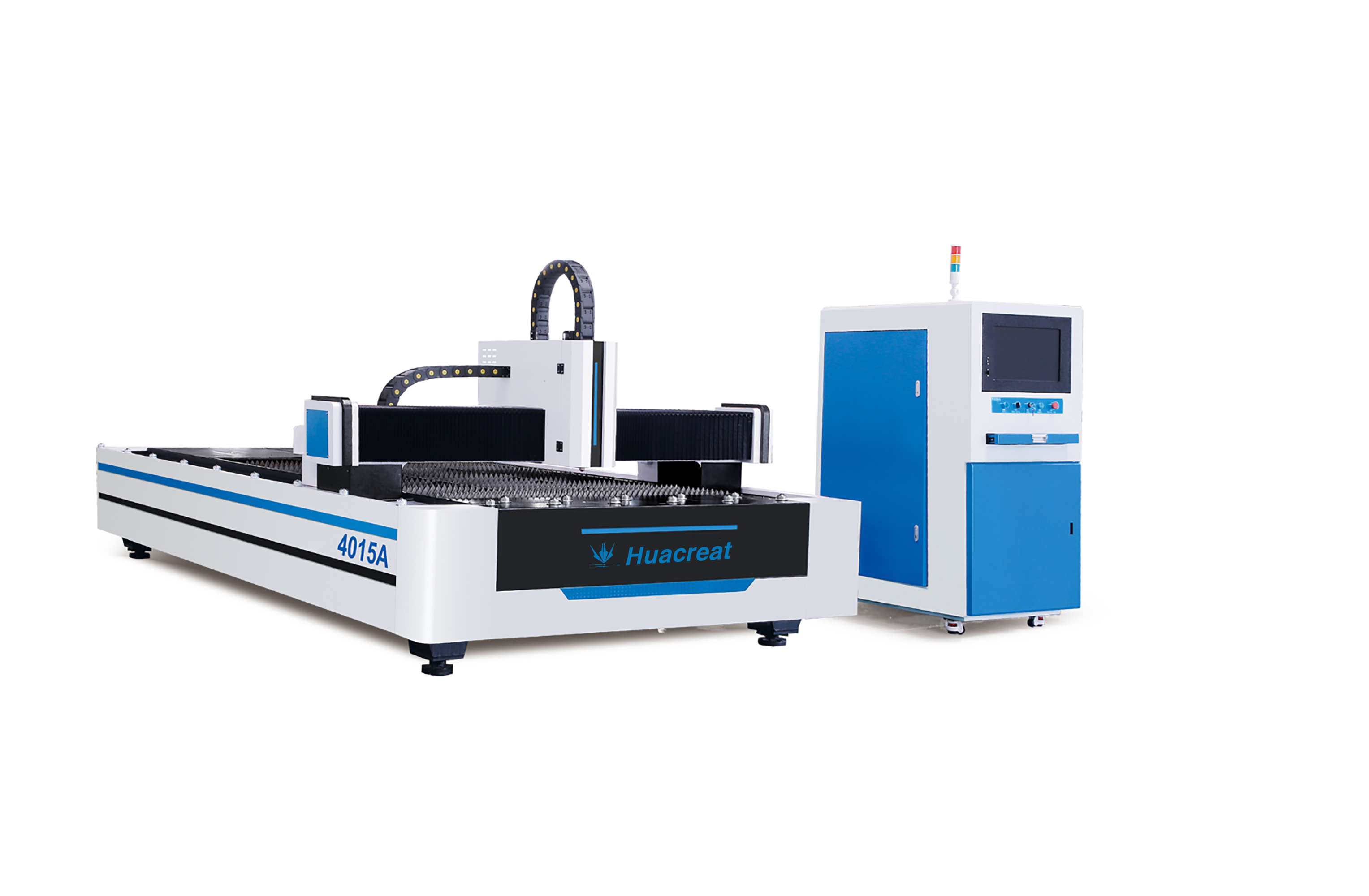

Precision steel sheet machine tool
Cast Aluminum beam
Single modular platform
China's high-end system
China's high-end laser generator
2-year warranty period
Respond to questions within 24 hours and solve problems within a week
Features：
1．Economically machine
This machine has a simple design and can make full use of the user's studio. It is worth the money and is a boon for start-ups. It has a rich cutting process, so it can cut thin plates as fast as lightning.
Precision cutting
Smooth cutting surface
Intelligent obstacle avoidance
Disc centering
Automatic edge finding
Intelligent typesetting
Frog jump cutting
Scanning cutting
Traceless micro seams
2.keep clean
Adopt follow-up dust extraction mode
Higher efficiency, environmentally friendly and dust-free
3.Useful configuration
Cypcut control system, MAX laser generator, BLT cutting head, world brand motor, highly matched, fast response speed, high interoperability, low failure rate and easy maintenance.
*Intelligent control system
22-inch display screen, easy to learn and easy to use
*Laser generator
Super strong laser beam, high electro-optical conversion rate
*Laser cutting head
Autofocus, all-round water cooling, strict dustproof
*Drive System
High-precision gear rack, high-precision linear guide
4．Steel plate welded bed
More stable, the vibration caused by the impact of the laser during operation greatly increases the cutting accuracy
Parameter :
Product Model | HC-FIBER-4015A |
Working Area | 4000*2000mm |
Laser Power | 1000w、1500w、2000w、3000w、4000w |
Positiong Accuracy | ±0.03mm |
Repeated Positioning Accuracy | ±0.02mm |
Maxmum Cutting Speed | 60m/min |
Maxmum Moving Speed | 120m/min |
